CZM Mill Production Line

The machine is designed to produce super-fine powder or micro powder of different materials with hardness less than 6 in Moh’s scale and humidity less than 6 percent such as kaolin, limestone, calcite, marble, talcum, barite, gypsum, dolomite, bentonite mud, mica, pyrophyllite, sepiolite, diatomite, graphite, alunite,fluorite, potassium feldspar, phosphorite, pigment and so on. The granularity of the end products is 325-2500 meshes (0.044-0.0055mm).

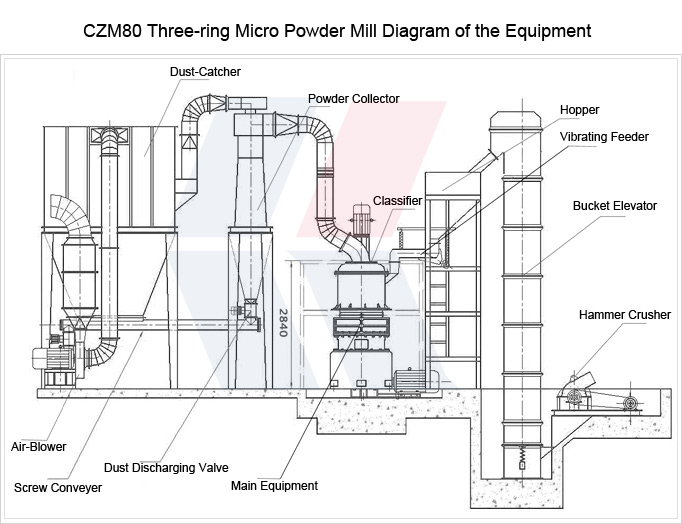

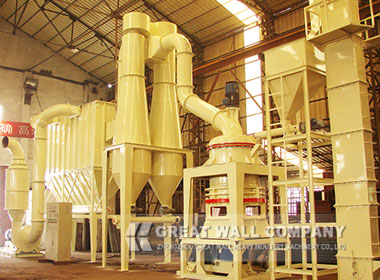

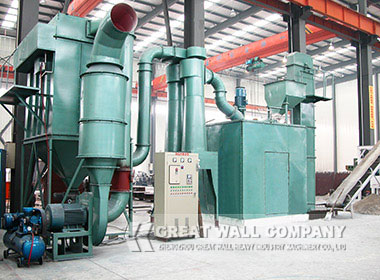

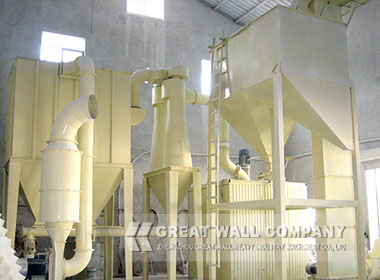

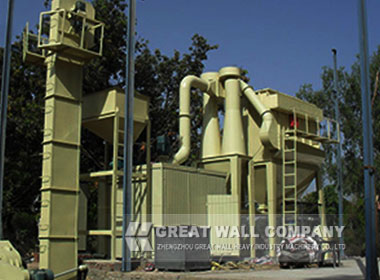

Three-Ring Micro Powder Mill Production Line mainly consists hammer crusher ,bucket elevator, hopper, vibrating feeder ,grinder, high pressure blower, powder collector, pulse dust collector and so on. When it works, large materials are first crushed by hammer crusher ,then sent to the hopper by bucket elevator, and then fed into the mill evenly by the vibrating feeder at the bottom of the hopper. After being grind, qualified fine powders are brought into the powder collector by the air generated by the blower, and then discharged through the discharging valve at the bottom of the powder collector. Unqualified materials are turned back to the mill to be regrind.

This production line features high efficient, energy saving ,long service life of wearing parts, safe and reliable operation, less dust pollution etc.

Note: 1. Any change of technical data will not inform additionally.
