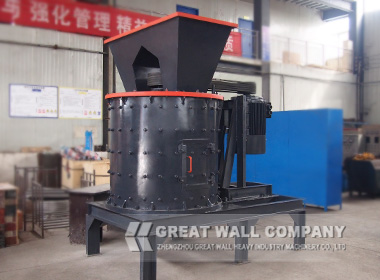

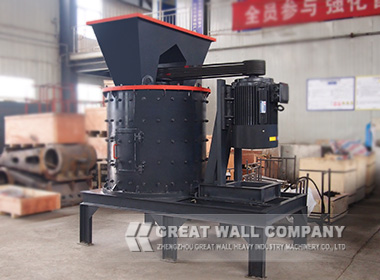

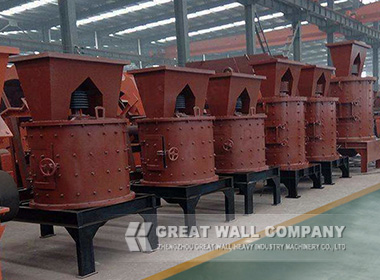

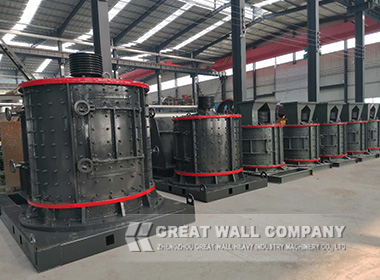

PFL Vertical Compound Crusher

This machine is widely used in the industry of mining, metallurgy, building materials, fireproof materials, chemical industry, electricity power, etc. It can crush materials with medium or less hardness into fineness, such as limestone, dolomite, cement clinker, gypsum, coal, sandstone, etc.

When this machine works, materials are fed into crushing chamber through feeding hopper, thrown to impact plate by dump tray which is rotating in high speed. Then bounced to the crushing chamber in downward direction, impacted by the high-speed rotating hammers, and thrown to the impact plate once again, above crushing process is repeated. Materials are continuously impacted, counteracted, extruded and ground in the conical crushing chamber. Crushed materials fall in a spiral shape and discharged from the bottom of machine.

The machine has features of large crushing ratio and high crushing efficiency; no screen bar setting, not easy to block; smooth operation, low noise, small vibration; reasonable structure and low operating cost.

Model	Diameter of Cylinder (mm)	Feeding Size (mm)	Output Size (mm)	Capacity (t/h)	Motor Power (kw)	Weight (t)	Overall Dimension (mm)
PFL-800	800	＜50	＜5,90%	5-15	22	2.1	2100×1200×1700
PFL-1000	1000	＜50	＜5,90%	10-30	45	3.2	2600×1400×1900
PFL-1250	1250	＜50	＜5,90%	20-60	75	4.7	2800×1600×2100
PFL-1500	1500	＜50	＜5,90%	30-80	110	7.2	3100×1900×2200
PFL-1750	1750	＜50	＜5,90%	40-100	160	10.8	3710×2360×2390
PFL-2000	2000	＜50	＜5,90%	60-130	200	15.1	4100×2660×2620

Note: 1. Any change of technical data will not inform additionally.
