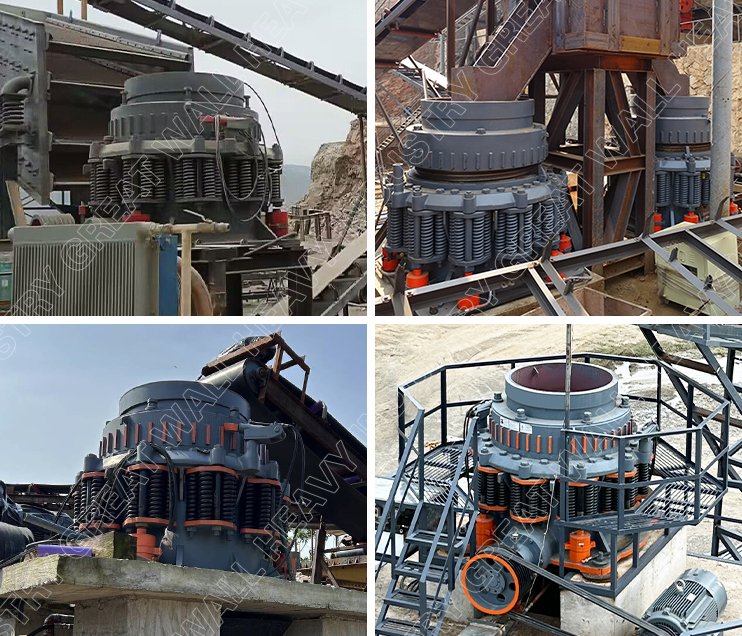

PYF Compound Cone Crusher

PYF compound cone crusher is an updated and improved model that combines the characteristics of spring and hydraulic cone crushers. It is widely used in fields of mining, building materials, metallurgy,etc. It is suitable for medium and fine crushing on basalt, river pebbles, granite, quartz stone, metal ore and other high-hardness materials.

The motor drives the eccentric bushing to rotate through the pulley, V-belt, transmission shaft, and bevel gear. The main shaft would do pendulum movement under the force of eccentric sleeve, so that the mantle liner above the main shaft approaches and sometimes leaves the concave liner. Materials would be continuously extruded, squeezed and bent to be crushed in the annular crushing cavity formed by mantle and concave liners, the crushed materials are discharged from the bottom discharge port.

1. Reasonable cavity type and stroke design make the material pass through the crushing cavity faster and the output is higher.
2. Hydraulic cavity clearing and hydraulic adjustment of the discharge port improve the operating efficiency of the equipment.
3. There is no need to inject glue for the assembly of the mantle and concave liners, and the replacement is quick and convenient.
4. Automatic lubrication system to ensure the safety of equipment parts.

Model	Cavity Type	Max Feeding Size(mm)	Adjustable Range of Outlet(mm)	Capacity (t/h)	Motor Power (kW)	Weight (t)
PYF600	C	95	10-38	20-76	30-37	5.3
	M	72	6-38	18-60
PYF1000	C	160	13-38	80-235	90-110	10.8
	M	115	10-25	65-150
	F	80	6-19	52-115		10.51
	EF	50	6-19	50-102
PYF1200	C	180	13-38	115-260	110-132	15.5
	M	130	10-25	100-175
	F	90	10-19	80-140
	EF	60	6-19	60-130
PYF1300	C	200	16-51	150-390	185-200	24.1
	M	150	13-25	115-210
	F	102	10-19	90-160
	EF	70	8-19	80-155
PYF1400	C	215	19-51	200-440	200-220	26.3
	M	160	16-25	155-230
	F	115	13-22	150-230
	EF	76	10-19	122-200
PYF1650	C	235	22-64	265-580	220-250	37.75
	M	175	19-38	215-330
	F	130	13-25	180-285
	EF	90	10-19	148-220
PYF1950	C	267	22-64	330-725	280-315	59.6
	M	203	16-25	230-330
	F	140	13-22	185-340
	EF	95	10-19	180-335

Note: 1. Any change of technical data will not inform additionally.
