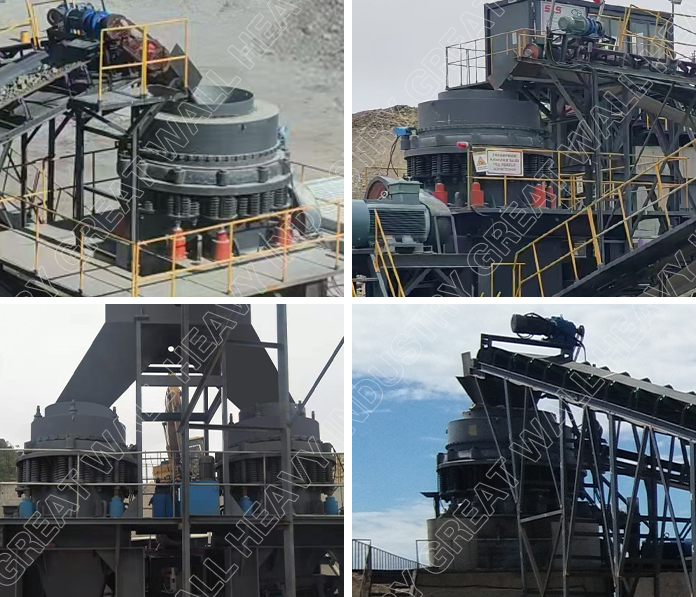

CZS High-efficient Cone Crusher

Usage and Application
CZS High-efficient cone crusher is a high-performance type optimized and improved on the basis of PY series spring cone crusher. It is widely used in fields of mining, building material, metallurgy, etc. It is suitable for medium crushing and fine crushing on basalt, river stone, granite, quartz, metal ore, etc with high hardness materials.

Features
1. The combination of optimized cavity design, reasonable running speed and stroke , causes its bigger production capacity.
2. Hydraulic cleaning system could clean the crushing cavity fast, this reduces downtime.
3. Based on lamination crushing principle, there are more cubic end products, particle size is even, gradation is also reasonable.
4. System of multi-point control of independent thin oil lubrication can ensure the double protection of bearing lubrication, ensure the safe operation of the equipment.
5. Over-iron protection device and automatic control system can achieve automatic protection.

When it works, electric motor drives eccentric bushing via pulley, v-belt, transmission shaft and bevel gear. The main shaft would do pendulum movement under force of eccentric shaft, so as to mantle would be close to concave and far from concave. Materials would be continuously extruded, bended and impacted in the annular crushing cavity formed by mantle and concave, crushed materials would be discharged from bottom discharge mouth.

Model	Dia. (feet)	Cavity Type	Max Feeding Size(mm)	Adjustable Range of Outlet(mm)	Capacity (t/h)	Motor Power(kW)	Weight (t)	Overall Dimension (mm)
CZS24B	2’	Fine	60	3~38	16~50	30	4.8	1785×1447×1783
		Medium	80	10-38	18~65
		Coarse	90	13-38	22~70
CZS24D	2’	Fine	30	3~13	9~35	30	4.8
		Coarse	40	5~16	22~70
CZS36B	3’	Fine	85	9~22	45~91	75	14.5	2656×1746×2410
		Coarse	150	13-38	59~163
		Extra Coarse	152	25-38	118~163
CZS36D	3’	Fine	35	3~13	27~90	75	15
		Medium	65	5~16	36~100
		Coarse	85	6~19	59~129
CZS51B	4 1/4’	Fine	115	13~31	109~181	160	26.5	2958×2354×3156
		Medium	178	16~38	132~253
		Coarse	205	19~51	172~349
		Extra Coarse	220	25~51	236~358
CZS51D	4 1/4’	Fine	54	3~16	36~163	160	27
		Medium	76	6~16	82~163
		Coarse	89	8~25	109~227
		Extra Coarse	113	16~25	209~236
CZS66B	5 1/2’	Fine	178	16~38	181~327	220	51	3941×2954×3771
		Medium	205	22~51	258~417
		Coarse	228	25~64	299~635
		Extra Coarse	313	38~64	431~645
CZS66D	5 1/2’	Fine	60	5~13	90~209	220	52
		Medium	76	6~19	136~281
		Coarse	113	10~25	190~336
		Extra Coarse	125	13~25	253~336
CZS84B	7’	Fine	236	19~38	381~726	315	90	4613×3251×4732
		Medium	284	25~51	608~998
		Coarse	314	31~64	789~1270
		Extra Coarse	391	38~64	880~1361
CZS84D	7’	Fine	89	5~16	190~408	315	92
		Medium	113	10~19	354~508
		Coarse	151	13~25	454~599
		Extra Coarse	172	16~25	508~653

Note: 1. Any change of technical data will not inform additionally.
