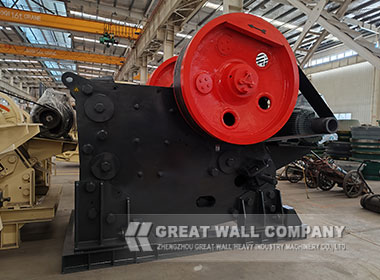

CZC Jaw Crusher
CZC jaw crusher is a new type of jaw crusher developed by our company on the basis of digesting and absorbing advanced technology at home and abroad. It has a unique structure and superior performance. It is used for coarse crushing of basalt, river pebbles, marble, granite, limestone, iron ore, construction waste and other materials. It is used in mining, metallurgy, building materials, roads, railways, water conservancy and chemical industries.
Tel: 0086-371-63769782
sales@greatwallcrusher.com
- Brief Introduction
- Features
- Main Specifications

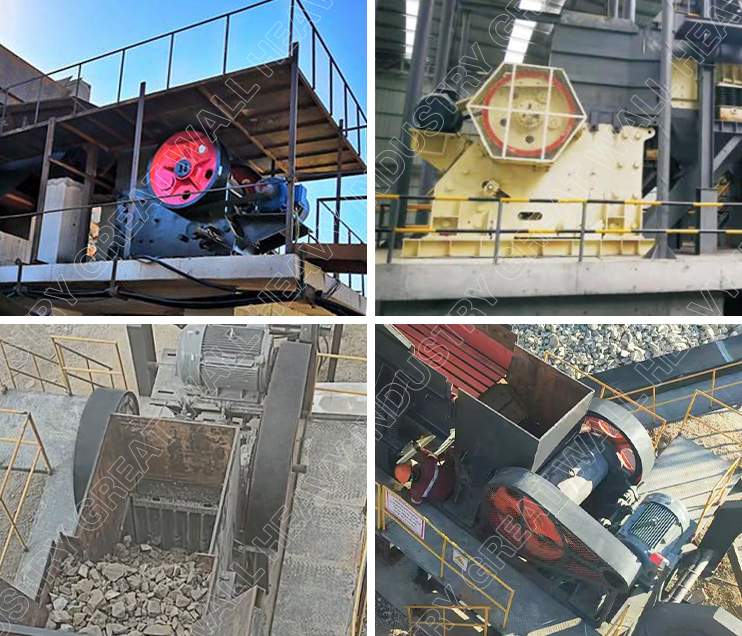

- Application Site
CZC jaw crusher is a new type of jaw crusher developed by our company on the basis of digesting and absorbing advanced technology at home and abroad. It has a unique structure and superior performance. It is used for coarse crushing of basalt, river pebbles, marble, granite, limestone, iron ore, construction waste and other materials. It is used in mining, metallurgy, building materials, roads, railways, water conservancy and chemical industries.
1. The host and the motor are integrated and installed, connected to the foundation through rubber shock pads.
2. Three different installation structures, suitable for various working conditions.
3. Large jaw angle, reasonable stroke, high speed, so that the output is greater during work.
4. Heavy-duty design, suitable for processing various sandstone aggregates and minerals.
5. The wedge-type discharge adjustment structure makes the adjustment faster and more convenient.
6. Large-size bearings, larger load capacity and longer service life.
2. Three different installation structures, suitable for various working conditions.
3. Large jaw angle, reasonable stroke, high speed, so that the output is greater during work.
4. Heavy-duty design, suitable for processing various sandstone aggregates and minerals.
5. The wedge-type discharge adjustment structure makes the adjustment faster and more convenient.
6. Large-size bearings, larger load capacity and longer service life.
| Model |
Feed Opening Size (mm) |
Max Feeding Size (mm) |
Adjustable Range of Outlet (mm) |
Capacity (t/h) |
Motor Power (kw) |
Weight (t) |
Overall Dimension (mm) |
| CZC80 | 800×510 | 430 | 40-175 | 65-380 | 75 | 7.9 | 2577×1526×1750 |
| CZC96 | 930×580 | 480 | 60-175 | 120-455 | 90 | 11.3 | 2880×1755×1860 |
| CZC106 | 1060×700 | 580 | 70-200 | 155-580 | 110 | 18.8 | 3320×2030×2005 |
| CZC110 | 1100×850 | 720 | 70-200 | 190-625 | 160 | 29.5 | 3770×2385×2750 |
| CZC125 | 1250×950 | 810 | 100-250 | 290-845 | 160 | 41.6 | 4100×2800×2980 |
| CZC140 | 1400×1070 | 910 | 125-250 | 385-945 | 200 | 54 | 4400×3010×3140 |
| CZC160 | 1600×1200 | 1020 | 150-300 | 520-1275 | 250 | 82 | 5900×3700×3750 |
| CZC200 | 2000×1500 | 1260 | 175-300 | 760-1590 | 400 | 137.2 | 6700×4040×4465 |
Note: Any change of technical data will not inform additionally.
