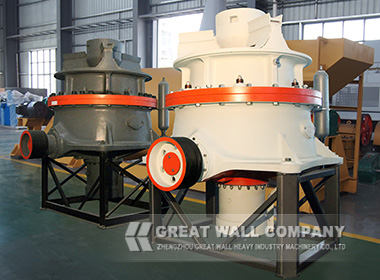

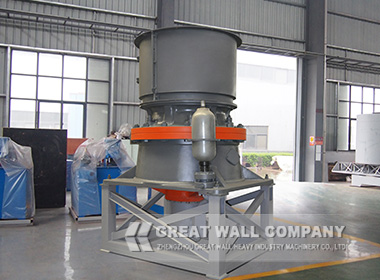

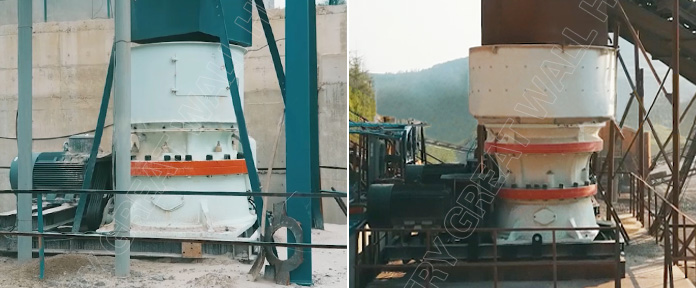

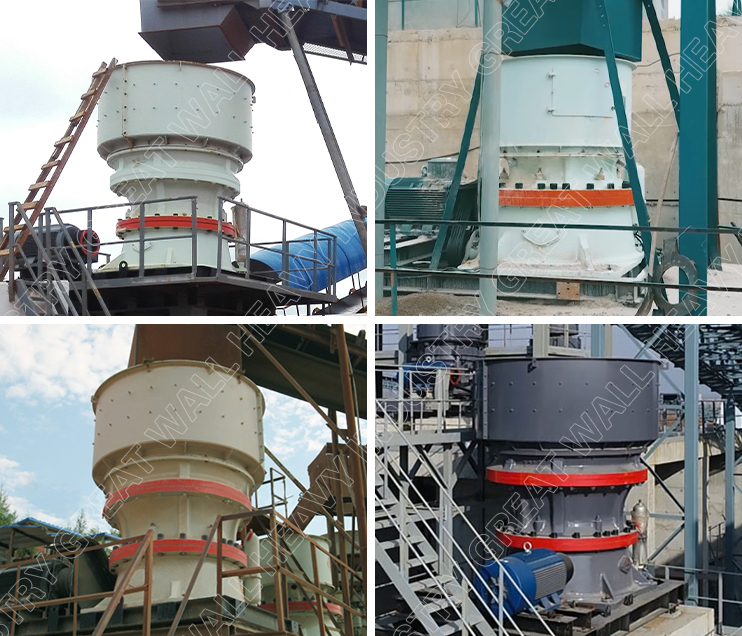

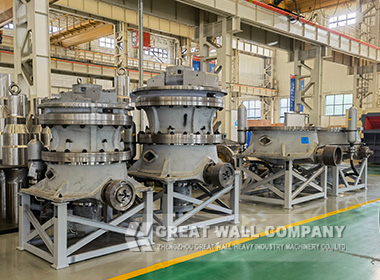

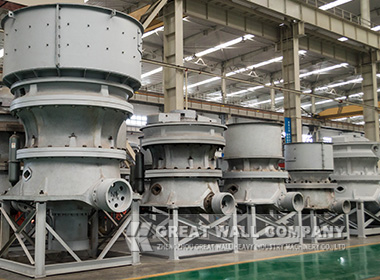

HSC Single Cylinder Hydraulic Cone Crusher

Usage and Application
HSC single cylinder hydraulic cone crusher is a high performance single cylinder structure hydraulic cone crusher after optimal designed, mainly used in industry of mining, building materials, metallurgy, etc. It could process medium and fine crushing for granite, limestone, river stone, basalt, iron stone, etc various rocks.

Features
1. Reasonable eccentricity and swing frequency as well as special crushing cavity design make the equipment with larger crushing ratio, higher capacity and better grain shape;
2. Set discharge port adjustment and overload protection function in one, simple structure, easy to use;
3. The intelligent control system can monitor running status of the equipment in real time, so as to make timely adjustment and keep the equipment in an ideal running state;
4. Enhanced equipment structure and advanced overload protection system ensure long-term safe operation of the equipment.

When machine works, electric motor would drive level transmission shaft to rotate via v-belt, then transmission shaft would drive eccentric bushing to rotate by bevel gear, the moving cone makes a swing motion under the forced action of eccentric bushing. After the material enters crushing chamber, it is continuously impacted and crushed between the mantle and concave, finally crushed material is discharged from crusher bottom.

Model	Cavity Type	Max Feeding Size (mm)	Minimum Output Size (mm)	Capacity (t/h)	Motor Power (kW)	Overall Dimension (mm)
HSC100	C2(Extra Coarse)	240	22	85-170	≤90	1550×1575×2545
	C1(Medium Coarse)	200	19	70-130
	F(Fine)	135	10	45-115		1550×1575×1965
	F1(Medium Fine)	65	8	35-80
	F2(Extra Fine)	35	4	27-60
HSC160	C2(Extra Coarse)	360	25	120-345	≤160	1875×1920×3195
	C1(Medium Coarse)	300	22	105-305
	C(Coarse)	235	19	90-275
	F(Fine)	185	13	66-210		1875×1920×2400
	F1(Medium Fine)	90	10	65-165
	F2(Extra Fine)	50	6	48-105
HSC250	C2(Extra Coarse)	450	35	255-605	≤250	2100×2320×4096
	C1(Medium Coarse)	400	29	215-515
	C(Coarse)	300	25	190-490
	F(Fine)	215	16	110-395		2100×2320×2780
	F1(Medium Fine)	110	13	115-340
	F2(Extra Fine)	70	8	90-255
HSC315	C2(Extra Coarse)	560	41	335-1050	≤315	2380×2735×4630
	C1(Medium Coarse)	500	38	305-895
	F(Fine)	275	16	170-665		2380×2735×3265
	F1(Medium Fine)	135	16	190-505
	F2(Extra Fine)	65	13	205-320

Note: 1. Any change of technical data will not inform additionally.
