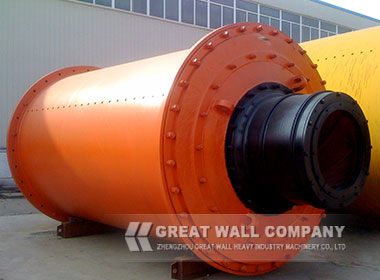

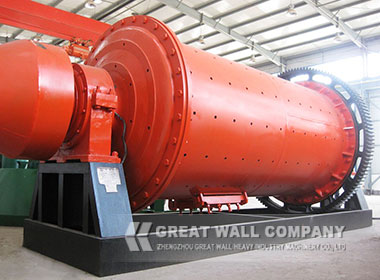

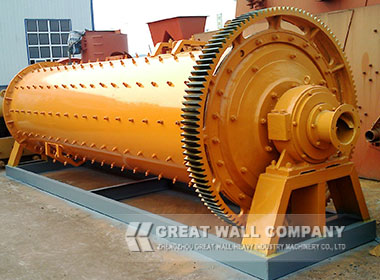

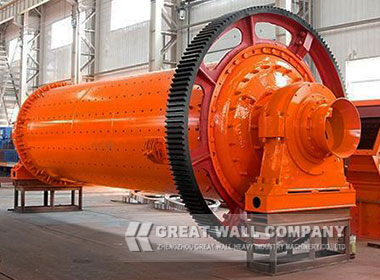

Ball Mill
The Ball Mill is widely used in the fields of building materials, mineral processing, chemical industry, electricity, etc. It can grind ores or other materials with certain granularity into fine powder.
Tel: 0086-371-63769782
sales@greatwallcrusher.com
- Usage and Application
- Working Principle
- Features
- Main Specifications
The Ball Mill is widely used in the fields of building materials, mineral processing, chemical industry, electricity, etc. It can grind ores or other materials with certain granularity into fine powder.
The Ball Mill is widely used in the fields of building materials, mineral processing, chemical industry, electricity, etc. It can grind ores or other materials with certain granularity into fine powder.
1. High crushing ratio;
2. Large capacity;
3. Easy operation, stable& reliable performance;
4. Wide applicability.
2. Large capacity;
3. Easy operation, stable& reliable performance;
4. Wide applicability.
|
Model (m) |
Rotation Speed of Cylinder (r/min) |
Loading of Ball (t) |
Feeding Size (mm) |
Output Size (mm) |
Capacity (t/h) |
Motor Power (kW) |
Weight (t) |
| Ф900×1200 | 36 | 1.0 | ≤20 | 0.074-0.4 | 0.5-1.5 | 18.5 | 4 |
| Ф900×1800 | 36 | 1.5 | ≤20 | 0.074-0.4 | 1.1-3.5 | 22 | 4.8 |
| Ф900×2100 | 36 | 1.7 | ≤20 | 0.074-0.4 | 0.7-3.5 | 15 | 3.9 |
| Ф900×3000 | 36 | 2.6 | ≤20 | 0.074-0.4 | 1.5-4.8 | 30 | 6 |
| Ф1200×2400 | 31 | 3.5 | ≤25 | 0.074-0.4 | 1.6-5 | 30 | 9.5 |
| Ф1200×2800 | 31 | 6.8 | ≤25 | 0.074-0.4 | 1.5-5 | 37 | 13 |
| Ф1200×4500 | 32 | 5.5 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.8 |
| Ф1500×3000 | 33.8 | 6.8 | ≤25 | 0.074-0.4 | 3-9 | 110 | 19 |
| Ф1500×4500 | 27 | 10.5 | ≤25 | 0.074-0.4 | 3.5-8 | 110 | 21 |
| Ф1500×5700 | 25 | 13 | ≤25 | 0.074-0.4 | 3.6-11 | 130 | 24 |
| Ф1830×3000 | 23.8 | 10 | ≤25 | 0.074-0.4 | 4-11 | 130 | 25 |
| Ф1830×3600 | 23.8 | 12 | ≤25 | 0.074-0.4 | 4.3-12 | 155 | 32 |
| Ф1830×4500 | 26.5 | 17 | ≤25 | 0.074-0.4 | 5.5-20 | 185 | 35 |
| Ф1830×6400 | 25 | 21 | ≤25 | 0.074-0.4 | 6-17 | 210 | 38 |
| Ф1830×7000 | 22.5 | 23 | ≤25 | 0.074-0.4 | 6.5-18 | 210 | 43 |
| Ф2100×3000 | 23 | 13 | ≤25 | 0.074-0.4 | 5-15 | 180 | 32 |
| Ф2100×3600 | 23.8 | 16 | ≤25 | 0.074-0.4 | 6-17 | 210 | 45.8 |
| Ф2100×4500 | 23 | 20 | ≤25 | 0.074-0.4 | 7-21 | 245 | 52.6 |
| Ф2100×7000 | 23 | 31 | ≤25 | 0.074-0.4 | 8-25 | 280 | 65 |
| Ф2200×3600 | 21.7 | 17.5 | ≤25 | 0.074-0.4 | 8-21 | 245 | 42.8 |
| Ф2200×4500 | 23.7 | 22 | ≤25 | 0.074-0.4 | 9-25 | 280 | 46.5 |
| Ф2200×5500 | 21 | 30 | ≤25 | 0.074-0.4 | 10-20 | 245 | 48.5 |
| Ф2200×6500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 14-26 | 380 | 52.8 |
| Ф2200×7500 | 21 | 33 | ≤25 | 0.074-0.4 | 16-30 | 380 | 56 |
| Ф2200×9000 | 21.5 | 44 | ≤25 | 0.074-0.4 | 9-25 | 280 | 61.8 |
| Ф2400×3000 | 20.6 | 30 | ≤25 | 0.074-0.4 | 15-50 | 245 | 59 |
| Ф2400×3600 | 21 | 21 | ≤25 | 0.074-0.4 | 9-25 | 280 | 61.8 |
| Ф2400×4500 | 21 | 26 | ≤25 | 0.074-0.4 | 15-60 | 380 | 65 |
| Ф2400×6500 | 21 | 38 | ≤25 | 0.074-0.4 | 14-42 | 475 | 76.7 |
| Ф2400×7000 | 21 | 41 | ≤25 | 0.074-0.4 | 14-42 | 475 | 76.7 |
| Ф2400×7500 | 21 | 44 | ≤25 | 0.074-0.4 | 15-45 | 475 | 78.9 |
| Ф2400×10000 | 21 | 58 | ≤25 | 0.074-0.4 | 18-55 | 680 | 94.5 |
| Ф2400×11000 | 21 | 64 | ≤25 | 0.074-0.4 | 19-58 | 680 | 99.2 |
| Ф2400×13000 | 21 | 75 | ≤25 | 0.074-0.4 | 25-60 | 800 | 115.2 |
| Ф2700×3600 | 20.7 | 26 | ≤25 | 0.074-0.4 | 12-35 | 380 | 82 |
| Ф2700×4000 | 20.7 | 29 | ≤25 | 0.074-0.4 | 15-36 | 380 | 85 |
| Ф2700×4500 | 20.7 | 33 | ≤25 | 0.074-0.4 | 15-40 | 430 | 97 |
| Ф3000×9000 | 19 | 109 | ≤25 | 0.074-0.4 | 22-80 | 680 | 168.6 |
| Ф3000×12000 | 19 | 134 | ≤25 | 0.074-0.4 | 25-85 | 800 | 196.3 |
| Ф3600×8500 | 18 | 131 | ≤25 | 0.074-0.4 | 45.8-256 | 1800 | 252 |
| Ф4000×5000 | 16.9 | 121 | ≤25 | 0.074-0.4 | 45-208 | 1500 | 203 |
| Ф4000×6000 | 16.9 | 146 | ≤25 | 0.074-0.4 | 65-248 | 1600 | 218 |
| Ф4000×6700 | 16.9 | 149 | ≤25 | 0.074-0.4 | 45-252 | 1800 | 238 |
| Ф4500×6400 | 15.6 | 172 | ≤25 | 0.074-0.4 | 54-306 | 2000 | 280 |
| Ф5030×6400 | 14.4 | 216 | ≤25 | 0.074-0.4 | 68-386 | 2500 | 320 |
| Ф5030×8300 | 14.4 | 266 | ≤25 | 0.074-0.4 | 88-500 | 3300 | 403 |
| Ф5500×8500 | 13.8 | 338 | ≤25 | 0.074-0.4 | 108-615 | 4500 | 525 |
Note: 1. Any change of technical data will not inform additionally.
