Belt Conveyor

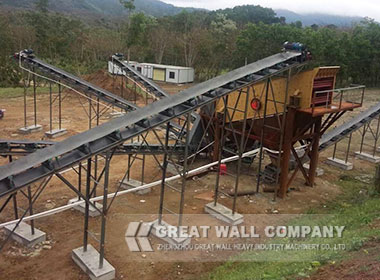

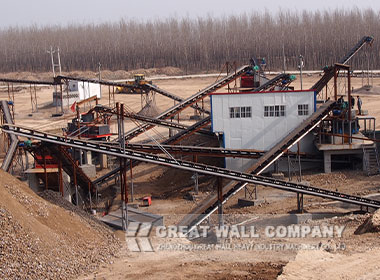

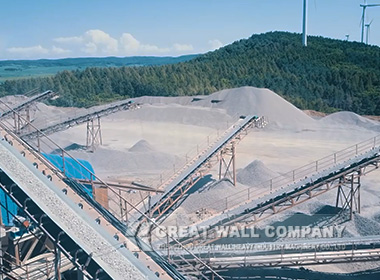

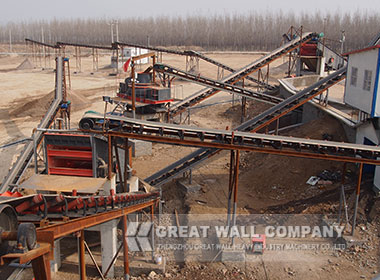

This machine is used for transferring bulk or packaged materials. It is widely used in the industry of mining, building materials, metallurgy, coal and so on. According to various transferring requirements, the transferring system can be single or multiple conveyors or combined with other equipment to make up slope or horizontal transfer system to meet the need of different working conditions.

Belt Conveyor is one kind of continuous conveying machine, which uses rubber belt as pulling and loading parts. Conveying belt pass around the drum rolls and turnabout drums, which forms a closed circuit. The loading and empty return parts are all supported by the carrier rollers, the tension device strain them by an appropriate power. When it works, the motor drives the drum roller by reducing device and chain, the drum roller turns the belt conveyor by frictional force, the material moves together with the belt and being discharged at the end .

The machine has advantages of large transfer quantity, simple operation, convenient maintenance and standard parts of the conveyor.

Belt Width (mm)	Conveying Length (m)/Power(kw)			Transporting Speed (m/s)	Capacity (t/h)
400	≤12/2.2	12-20/2.2-4	20-25/3.0-7.5	1.25-2.0	30-60
500	≤12/3	12-20/3-5.5	20-30/5.5-7.5	1.25-2.0	40-80
650	≤12/4	12-20/4-5.5	20-30/5.5-11	1.25-2.0	80-120
800	≤10/4	10-15/4-5.5	15-30/5.5-15	1.25-2.0	120-200
1000	≤10/5.5	10-20/5.5-11	20-40/11-22	1.25-2.0	200-320
1200	≤10/7.5	10-20/7.5-15	20-40/15-30	1.25-2.0	290-480
1400	≤10/11	10-20/11-22	20-40/22-45	1.25-2.0	400-680
1600	≤10/15	10-20/22-30	20-50/30-75	1.25-2.0	600-1080

Note: 1. Any change of technical data will not inform additionally.
