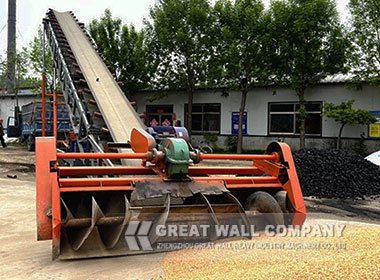

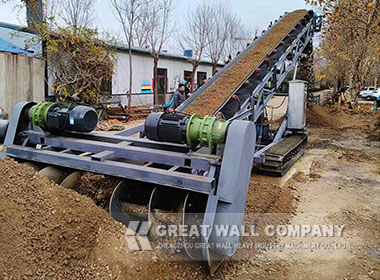

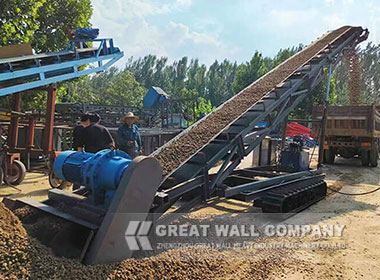

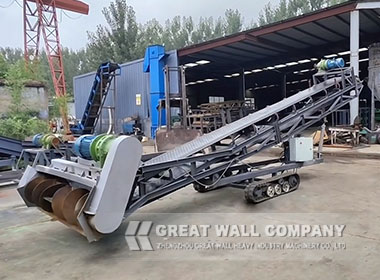

DPL Scraping Conveyor

This machine is used in mining, building materials, metallurgy, coal, grain and other industries to pick up and transport powdery and block materials. This machine can replace a loader for picking and loading operations.

1. It integrates scraping, loading and conveying, which is convenient and efficient;
2. Crawler base. It has flexible movement, strong traction and adhesion properties, it can move on uneven ground.;
3. Photoelectric integrated remote control operation. It can realize forward, backward, forward rotation, reverse rotation, lifting, telescopic and other functions;
4. The original electrical components are from well-known domestic and foreign brands to ensure safe and efficient operation of the equipment.

Model	Conveyor Belt Width (mm)	Conveyor Length (m)	Spiral Diameter (mm)	Spiral Scraping Width (mm)	Total Power (kw)	Discharge height adjustable range (m)	Conveying Capacity (t/h)
DPL5040-8	500	8	400	1200	12.2	1.5-3	50-150
DPL5040-10	500	10	400	1200	13	2-5
DPL5040-12	500	12	400	1200	14	2-5
DPL8050-8	800	8	500	1200	15.2	1.5-3	150-300
DPL8050-10	800	10	500	1200	17	2-5
DPL8050-12	800	12	500	1200	17	2-5
DPL8060-8	800	8	600	1500	21.5	1.5-3	200-450
DPL8060-10	800	10	600	1500	22.5	2-5
DPL8060-12	800	12	600	1500	22.5	2-5
DPL12070-12	1200	12	700	2200	49.5	2-5	400-750
DPL15080-12	1500	12	800	3000	57.5	2-5	500-900

Note: 1. Any change of technical data will not inform additionally.
